Lift Capacity
230 kg
Working Height
17.7 m

Product Information

  • Proportional control ensures precise positioning and smooth driving.
  • Multi-function allowed at the same time improves the operation flexibility
  • Compact design with zero tail swing and tight turning radius enables easy access to narrow aisles.
  • DC electric driving system enables the usage in quiet and zero emission operation areas.

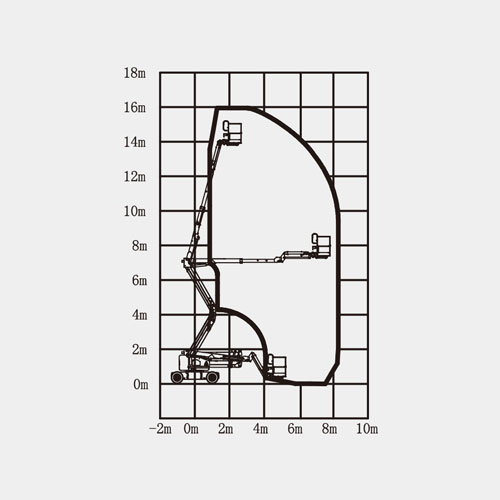

Max. Working Height 17.7 m
Max. Horizontal Reach 9.39 m
Max. Up and Over Clearance 7.56 m
Platform Dimensions 1.8 ×0.76 m

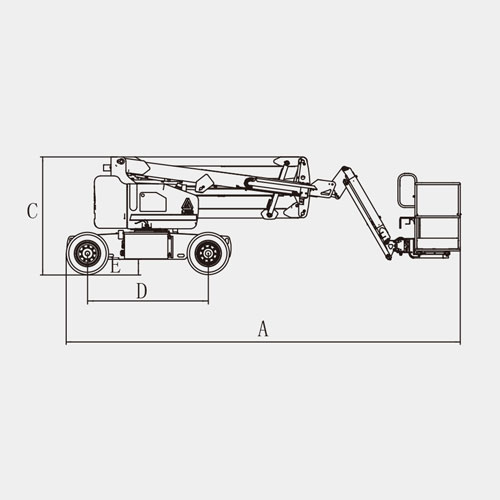

Length-Stowed(A) 7.56 m

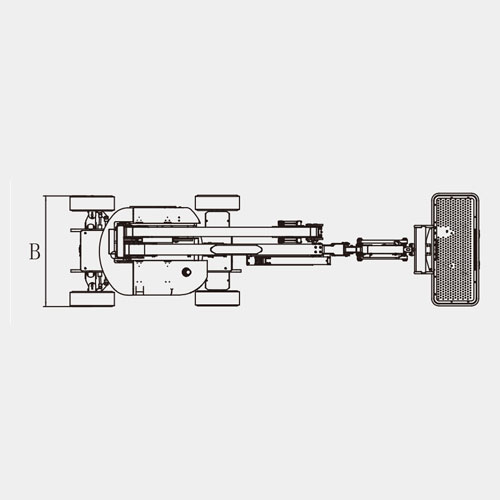

Overall Width(B) 2.31 m
Height-Stowed(C) 2.13 m
Wheelbase(D) 2.04 m
Ground Clearance(E) 0.37 m
Lift Capacity 230 kg
Platform Rotation 160°
Driving Speed-Stowed 7.2 km/h
Gradeability (2WD) 45%
Turning Radius – Outside 4.62 m
Power Deutz D2011 L03i
Machine Weight 7,500 kg
Max. Slope 1,5/3,0 °
Up/Down Speed 16/34 sec
Driving Speed 0,8 – 4,0 km/h
Non-marking Tires 305 x 115 mm
Driving Motor Hydraulic
Lifting Motor 24V/3,3kW
Battery 4x6V/225Ah
Charger 24V/30A
Machine Weight 1.560 kg
